Settings

Version 1.x.x



Version 2.x.x

OK button closes the dialog box. The changed values will be valid for the current session since they were not saved.

Cancel button ignores the changes and closes the dialog box.

Save button saves the settings to the configuration file closes the dialog box. They will be available next time the T-InstallerWizard is started.

Defaults button loads the default values listed below. They should be saved in order to be valid for the following sessions. If OK button is pressed, the value will be valid for current session. Next time the T-InstallerWizard is started, previous values will be loaded.



Default values:

Default Keyword for Installation Filename = Installation

Working Directory: ..:\My Documents\TInstallerWorks

Use Main File’s revision in Installation Filename: Checked

Add xxBit phrase to Installation Filename: Checked

Check updates at startup: Checked

Auto Save Project File: Checked

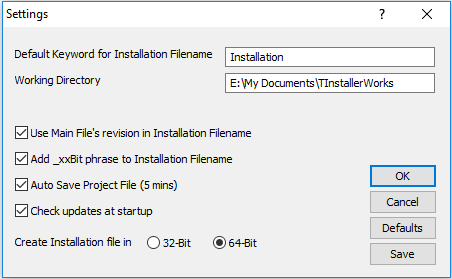

For Version 1.x.x; Create Installation File in: 32-Bit if TInstallation Wizard is 32Bit / 64-Bit if TInstallation Wizard is 64Bit

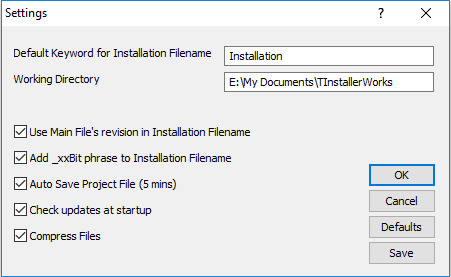

 For Version 2.x.x; Compress File: Checked

When Main (Executable) File is added to the project, installation file name is derived from Main (Executable) File’s name by appending the phrase in Default Keyword for Installation Filename field.



Working Directory field shows the directory where project files will be saved unless different path is selected for opening or saving a project. Installation file that is created by Build action is created in the same directory with the project file.



Use Main File’s revision in Installation Filename checkbox determines if version of the Main (Executable) File will be appended to the installation file name



Add xxBit phrase to Installation Filename checkbox determines if binary type of Main Exe file (32/64 Bit) will be added to the installation filename. This shows the Main Exe file type, not the installation file.



When Check updates at startup checkbox is marked, it is automatically checked whether an update for the T-InstallationWizard is available at start T-InstallationWizard up.



Auto Save Project File function automatically saves the project file every 5 minutes if marked. If there is no filename for the project yet, the project is saved in a temporary file. When a filename is assigned to the project, the temporary file is deleted. If the T-InstallationWizard terminates before saving the project besides the standard way of closing the application, next time when T-InstallationWizard is started, it will be asked whether to recover unsaved project.



For Version 1.x.x; Create  Installation File in 32-Bit / 64-Bit determines if the installation file will be 32-Bit or 64-Bit application. Both of 32-Bit and 64-Bit versions of the TInstallationWizard application can create both 32-Bit and 64-Bit Installation files.



For Version 2.x.x; Compress Filecheckbox determines if the files to be included in the Installation File will be compressed.
