T-Install

 T-InstallationWizard generates an installation file based on T-Install utility. T-Install comprises eight pages. Main file name, version info (if any) and icon will be displayed. It is resizeable.

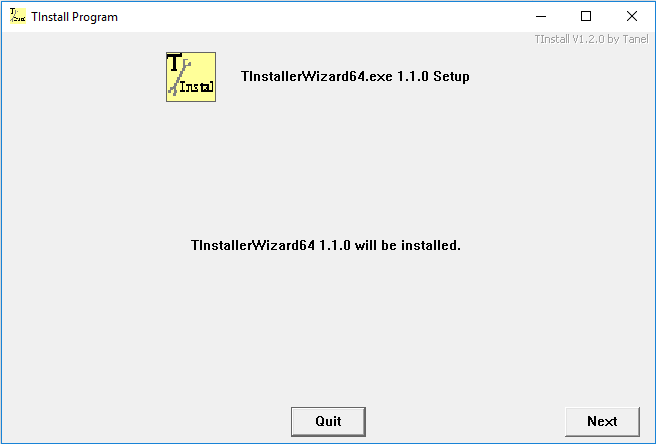

 1.   Welcome screen displays name and version of the application to be installed as shown below.

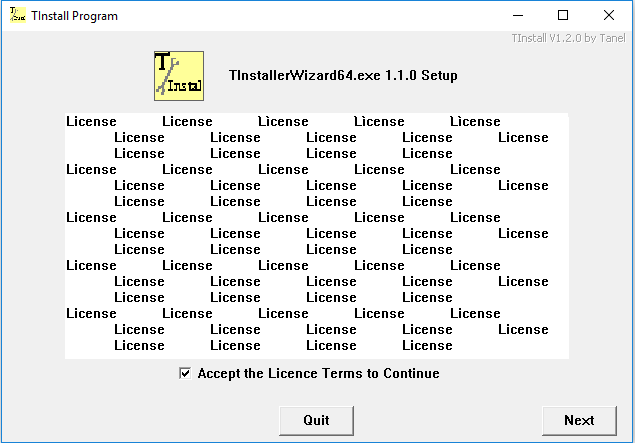

2.   License Terms page is displayed if any text is included. License Terms acceptance check box is displayed if it is enabled when creating the installation file. Next button appears when License Terms acceptance check box is marked.

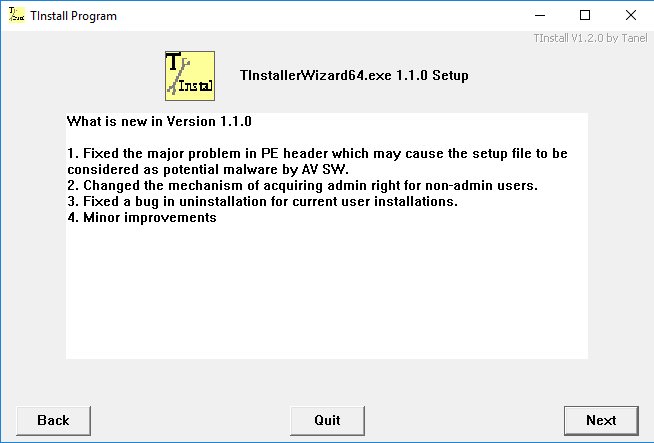

3.   Information text is displayed if any text is included.

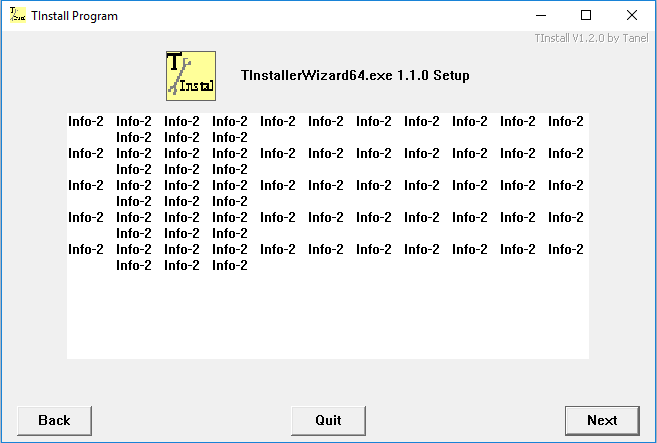

4.   Additional Information text is displayed if any text is included.

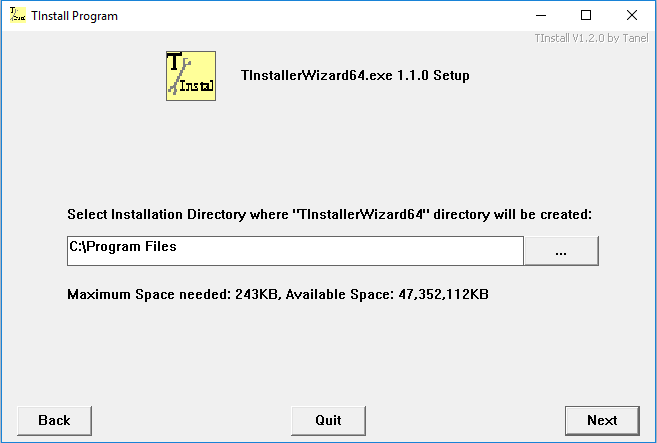

5.   Installation directory selection page is displayed. Either Programs or ProgramsX86 folders is displayed by default. If application and operating system are 32bit or 64bit, Programs directory will be displayed while ProgramsX86 directory will be displayed for 32bit application and 64bit operating system. Installation directory selection can be changed.

Rev 2.0.0 and later; Maximum Space needed for installation and available space on the selected drive are displayed. Available space is updated when the target drive is changed.

6.   Optional file selection and installation structure page is displayed. Files with check boxes are optional files. By default, the are not marked. Marked ones will be installed. On this page, install for current User or all users selection is done if it is enabled at T-InstallationWizard.

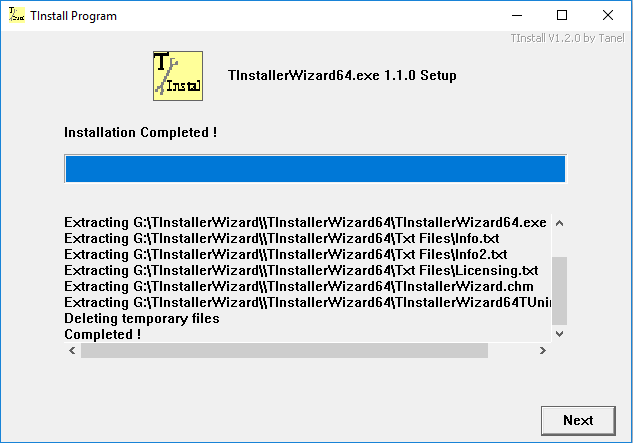

7.   Installation process is performed. A progress bar shows progress of the installation. Details are displayed if it is enabled at T-InstallationWizard. At this stage, Back button is removed.

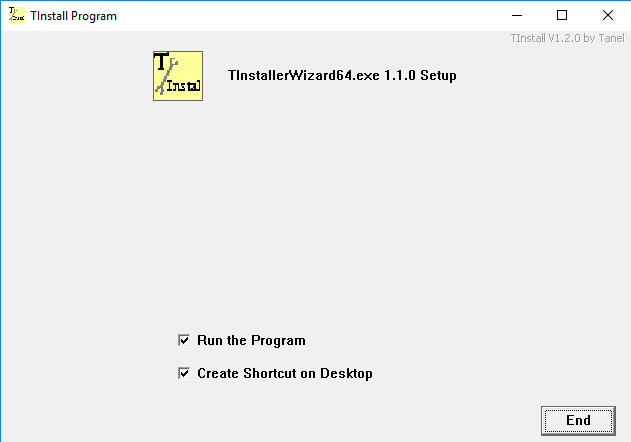

8.   On the last page, two options are displayed if they enabled at T-InstallationWizard; Create Shortcut on Desktop and Run Application when exit.
